SECONDHAND GENERATORS

Description

Equipped with a 93L fuel tank for a running time of 9.12 hours @ 100% load
Three Phase 400V, ideal for homes, garages and workshops. Though you can run a small amount of 230v equipment on a solo basis from them, this is not their intended purpose and it can be difficult to 'balance' the phases and stop the generator from tripping out. In order to run 230v output only, and reach the generator's output capacity you will need to accurately 'balance' the loads on each phase (the amount you are drawing from each phase of electricity).
Powered by a powerful Hyundai HY4DX21-53D 4-stroke, water-cooled 3.86L 4-Cylinder diesel engine producing a maximum output of 39kW
1500rpm diesel generator is ideal for static installation for daily prime power, as well as for regular standby generator/backup generator use.
Uses ATS capabilities to automatically start and shut down during a power cut. When power returns from the mains, the ATS module will then safely turn your generator off.
Housed in a silenced case with a sound rating of just 72dB @ 7 metres

DESCRIPTION

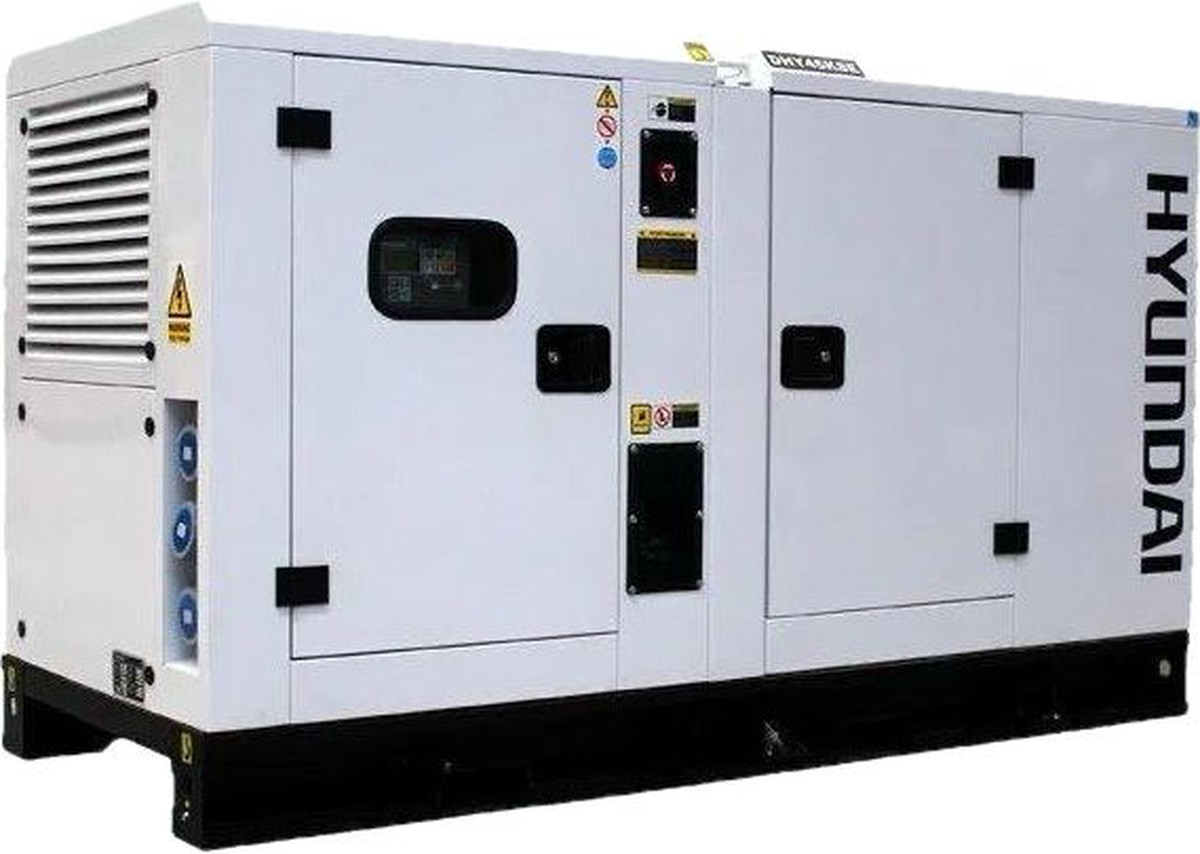

The Hyundai DHY45KSE is a versatile long-run diesel generator capable of three-phase (400v) outputs. Perfect for workshops, garages, and home use, this compact powerhouse ensures reliable backup power during outages. The generator is equipped with an Automatic Voltage Regulator alternator to produce clean energy. This means that any sensitive electronic equipment, such as televisions, PCs and laptops, can safely be powered by the DHY45KSE.

Equipped with a 93L fuel tank, the DHY45KSE provides an extended running time of up to 9.12 hours @ 100% load, powered by a robust 4-stroke, air-cooled 3.86L Hyundai diesel engine delivering a maximum output of 39kW.

Featuring ATS compatibility (Automatic Transfer Switch sold separately), the generator can automatically start during power cuts and switch back when mains power resumes. Housed in a silenced weather-proof canopy what ensures a quiet operation at just 72dB @ 7m with 75% load.

SPECIFICATIONS
Model DHY45KSE
Rated/Prime kVA 40
Rated/Prime kW 32
Max/Standby kVA 45
Max/Standby kW 35
Phase 3-Phase (Single phase 230V is possible with balanced loads)
Voltage 400V
Voltage regulation AVR
Fuel Tank Capacity 93L
Runtime @ 100% Load 9.12 hours
Noise Level @ 7m 72 dB(A)
Engine Model HY4DX21-53D
Power Output 39kW @ 1500rpm
Fuel Consumption 10.2L per hour @ 100% load
Connection 2 x 230V/32A 1 x 230V/63A Busbar
output
Oil capacity 11L
Recommended Oil Type SAE 15W40
Weight 1045kg
Dimensions (LxWxH) 2200 x 950 x 1250

Delivery notes

Collection only or delivery on request

Contact notes

Telephone 01273 492988 or 07789642002
Email nickigreen@hotmail.com
